Feature Description

●2 sets of 40A switching capability
●Single coil and double coils are all available
●The height of the product is 10mm,it is suit for flat mounting
●The contact can withstand 1020A 10ms short-circuit impulse current
●UL insulation system:Class F
●Environment-friendly product (RoHS compliant)

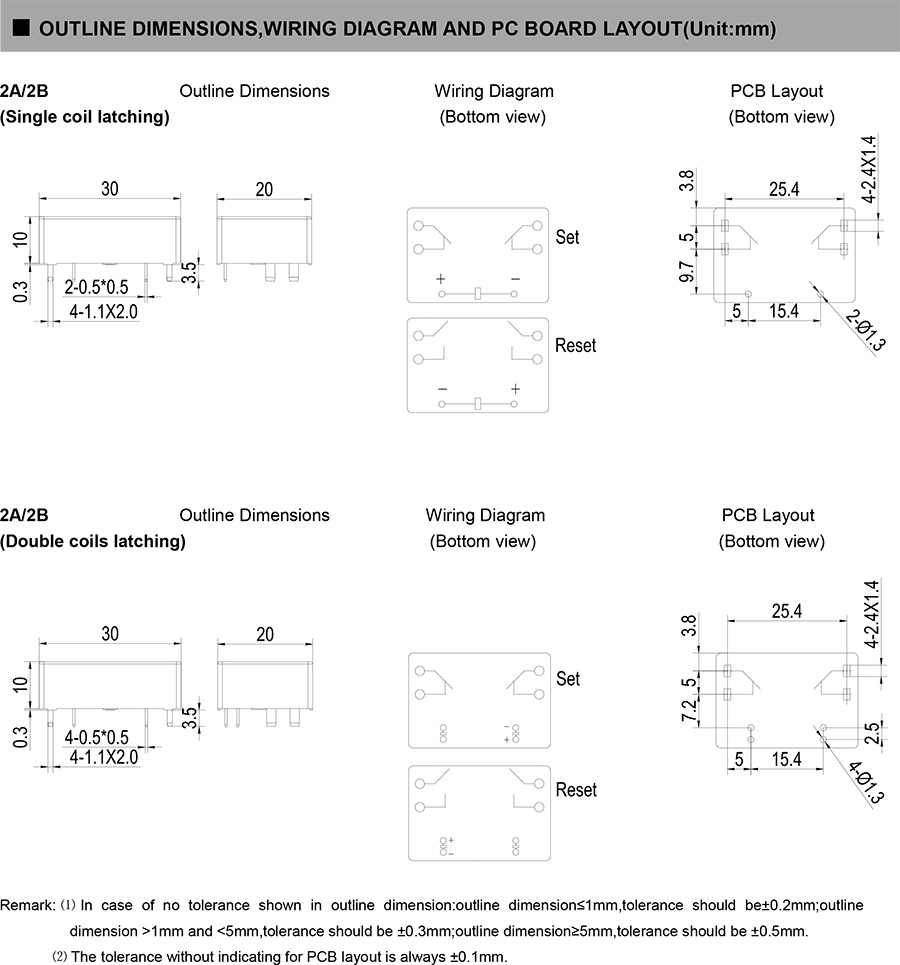

●Outline Dimensions:(30.0×20.0×10.0)mm
●Main application:Smart home?Ev Charge
